Automatic Palletizing Arm with PLC System and Compact Design for Bag Handling in Feed Industry

Automatic Palletizing Arm with PLC System and Compact Design for Bag Handling in Feed Industry

Name: Automatic Palletizing Arm with PLC System and Compact Design for Bag Handling in Feed Industry
Brand: XZB Robot
Availability: InStock

Pricing

Price on request

MOQ

1 set

Warranty

1 year

Lead Time

30-45 days

Brand

XZB

The XZB Automatic Palletizing …

Quick Inquiry

Fill out the form below and our team will respond within 2 hours.

Product Description

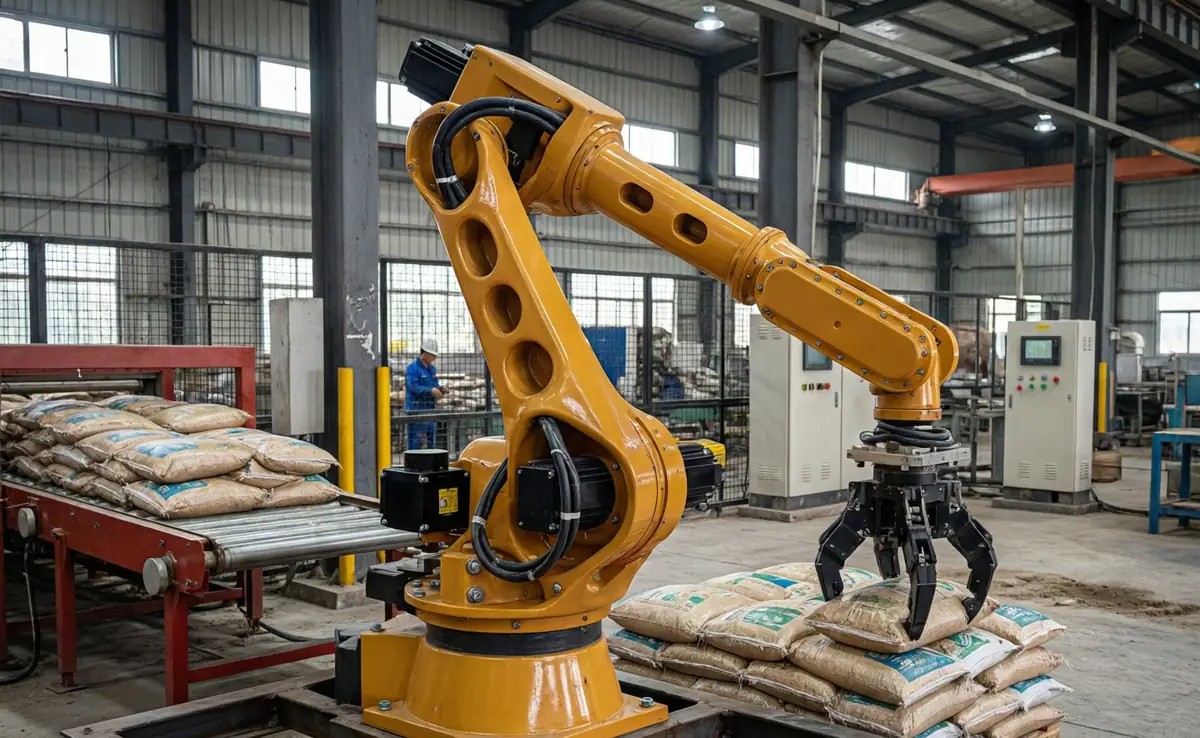

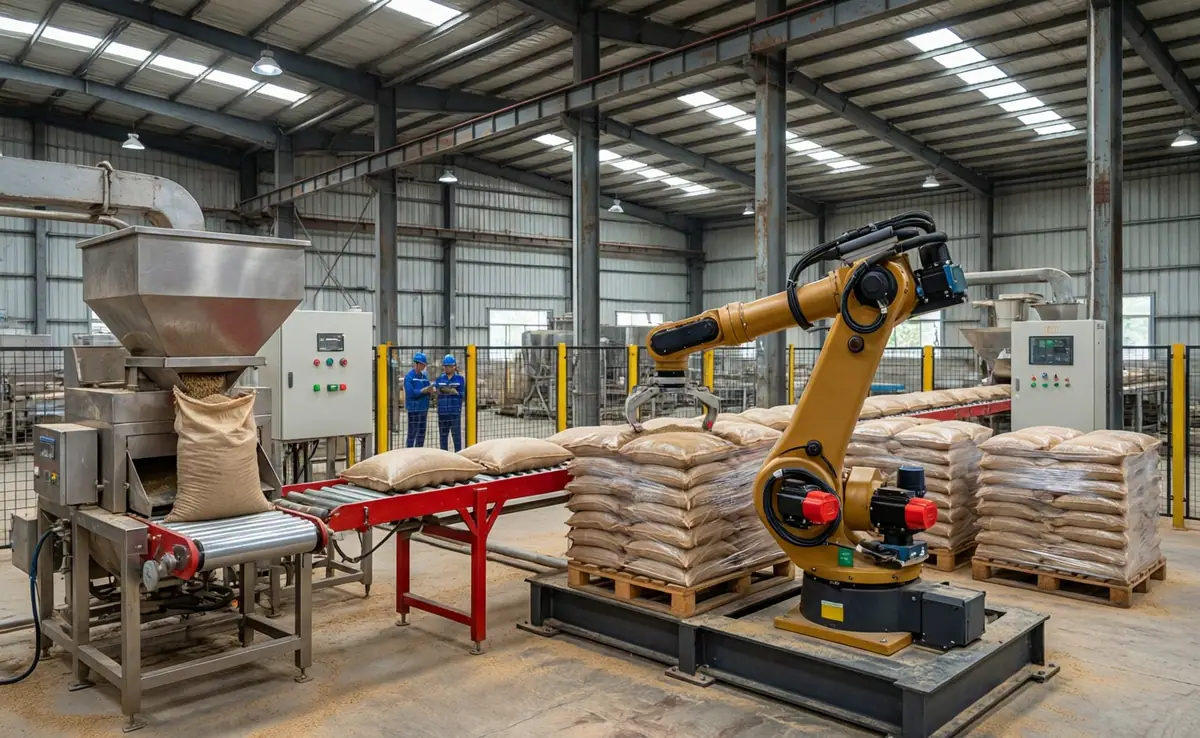

The XZB Automatic Palletizing Arm features an integrated PLC control system, specifically designed for high-efficiency bag handling in the feed industry. With a compact footprint and 180kg payload capacity, it delivers precision stacking at up to 800 bags per hour. The system integrates heavy-duty gear motors and Siemens PLC for reliable 24/7 continuous operation, making it ideal for feed mills, fertilizer plants, and cement factories seeking to automate their end-of-line packaging.

Technical Specifications

Payload	180 kg
Axes	4
Reach	3200 mm
Repeatability	±0.05 mm
Stacking Speed	800 bags/hour
Power Supply	380V/50Hz (customizable to 220V/60Hz)
Air Pressure	0.5-0.7 MPa

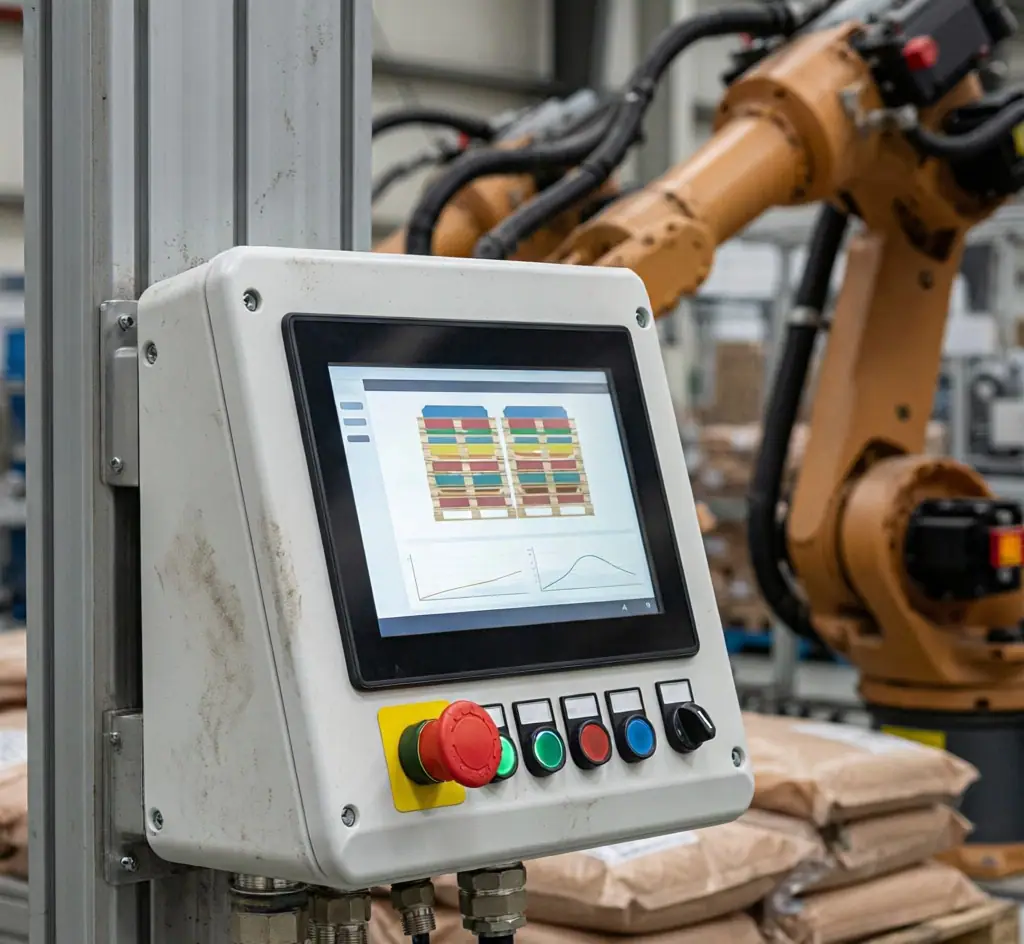

Control System	Siemens PLC + 7-inch HMI Touch Screen
Motor	Gear Motor

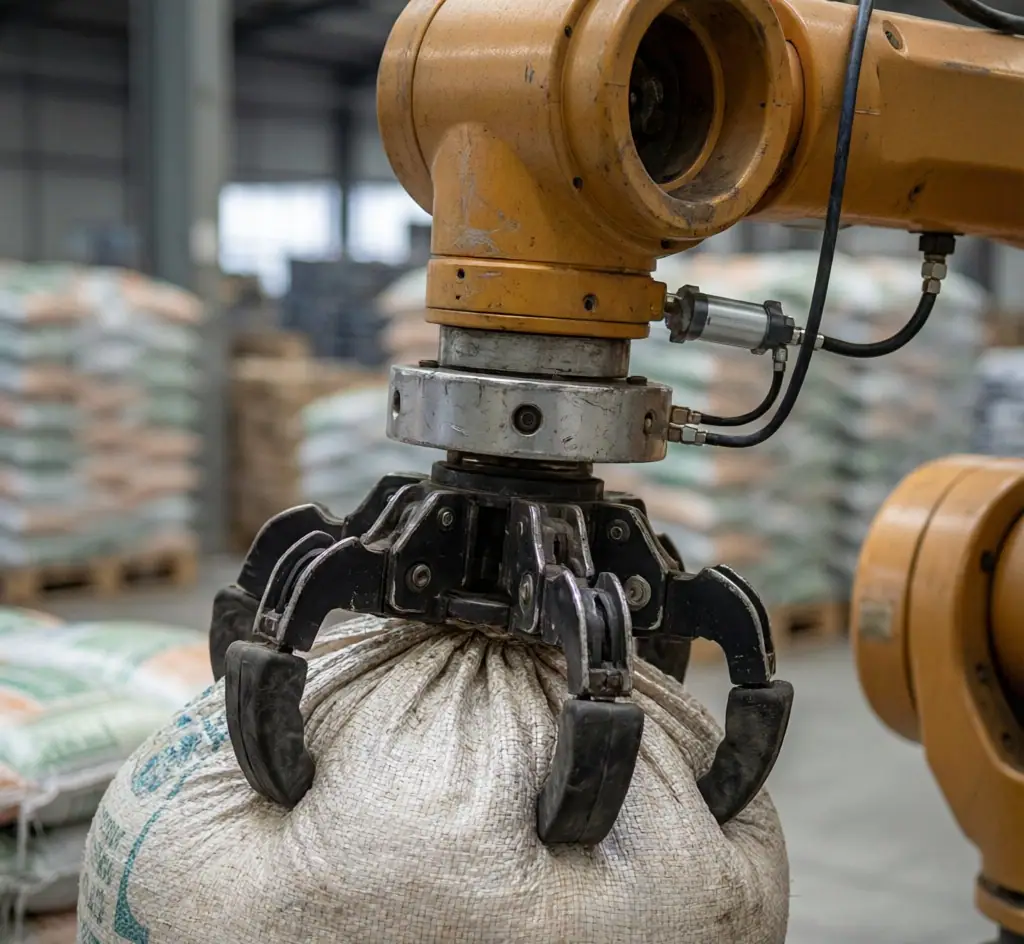

Gripper Type	Pneumatic bag gripper (vacuum/mechanical optional)
Weight	1200 kg
Dimensions	3200 × 2500 × 1800 mm
Max Bag Size	1000 × 600 × 300 mm
Pallet Size	1200 × 1000 mm (standard)
Operating Temperature	-5°C to 45°C
IP Rating	IP54

Key Features

PLC Control System

Integrated Siemens PLC with HMI touch screen for precise motion control and intuitive programming. Supports custom stacking patterns and quick product changeover.

180kg Payload Capacity

Heavy-duty end-of-arm tooling handles bags up to 50kg each with reliable grip and stable placement accuracy of ±0.05mm.

Compact Footprint Design

Space-optimized layout requiring only 3.2m × 2.5m floor area, suitable for retrofitting into existing production lines without major facility modifications.

Geared Motor Drive

Precision gear motors deliver smooth, high-torque performance with low maintenance requirements, rated for continuous 24/7 industrial operation.

Applications

Feed Industry Fertilizer Industry Building Materials Food Beverage

Frequently Asked Questions

What is the maximum bag weight this robot can handle?

The palletizing arm can handle bags up to 50kg each, with a total payload capacity of 180kg. The gripper is adjustable to accommodate various bag sizes and materials.

Can the robot be customized for different bag sizes?

Yes, the gripper system is fully customizable to accommodate various bag sizes (up to 1000×600×300mm), box dimensions, and bucket shapes. Changeover takes less than 15 minutes.

What is the typical lead time for delivery?

Standard lead time is 30-45 days from order confirmation. Custom configurations may require 45-60 days depending on component availability.

Does the system include installation and training?

Yes, we provide on-site installation, commissioning, and operator training as part of our standard package. Remote technical support is available 24/7.

What after-sales support do you offer?

We offer a 1-year comprehensive warranty, free spare parts during warranty period, lifetime technical support, and optional annual maintenance contracts.

Ready to Automate Your Production Line?

Get a free quote within 2 hours. Tell us your product type, bag size, and required speed — we'll recommend the best palletizing solution for your factory.

· 100% Response Rate · Response within 2 hours · No spam, ever ·
