Pricing
Price on request
MOQ
1 set
Warranty
1 year
Lead Time
30-45 days
Brand
XZB

The XZB Fully Automatic Robot …

Quick Inquiry

Fill out the form below and our team will respond within 2 hours.

* 100% Response Rate · Response within 2 hours · No spam, ever

Product Description

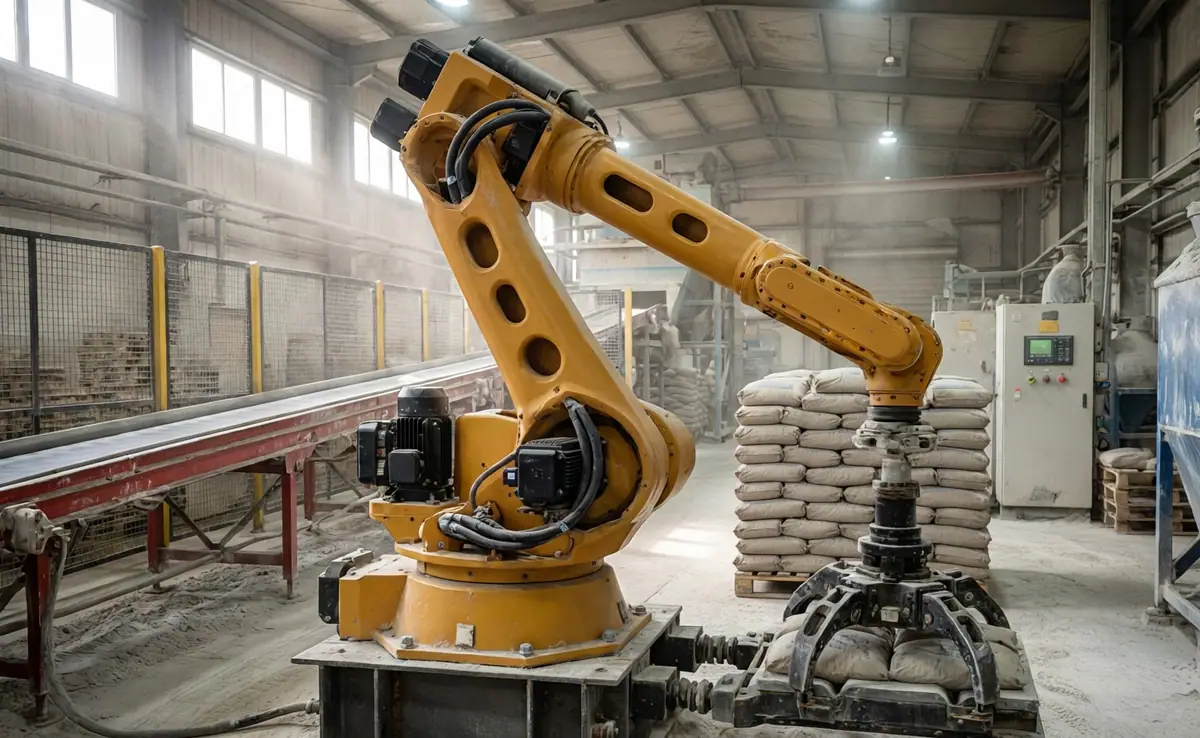

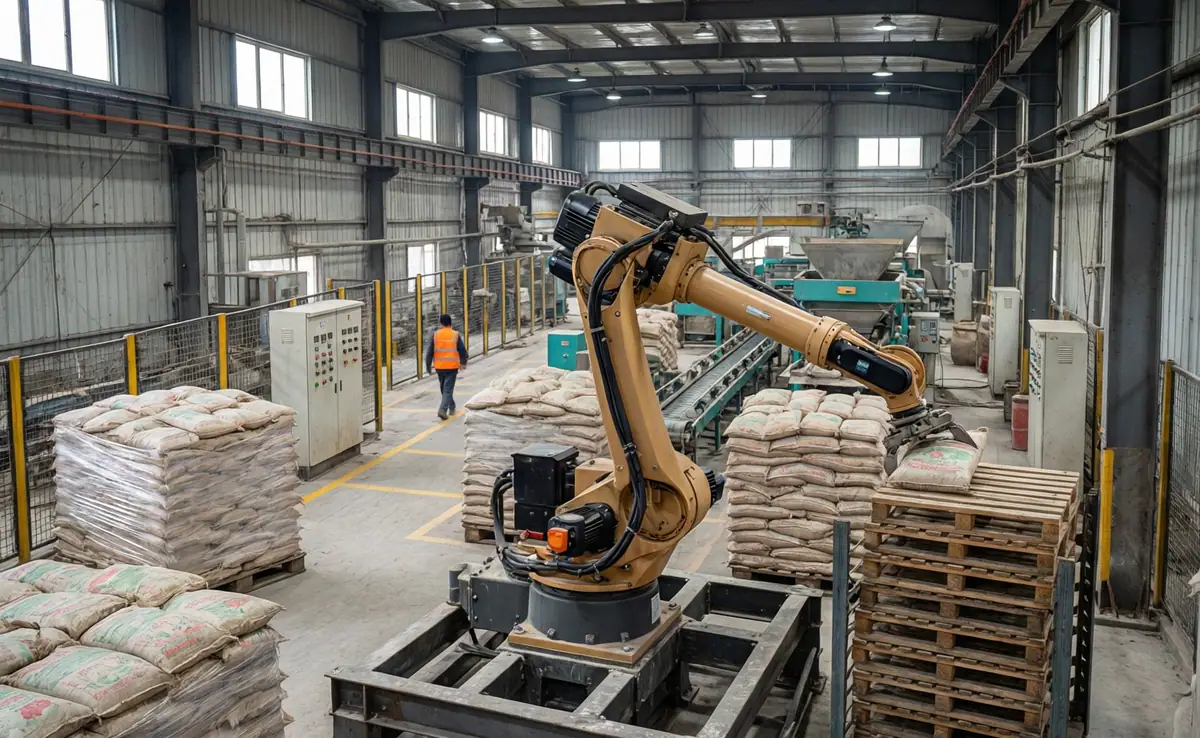

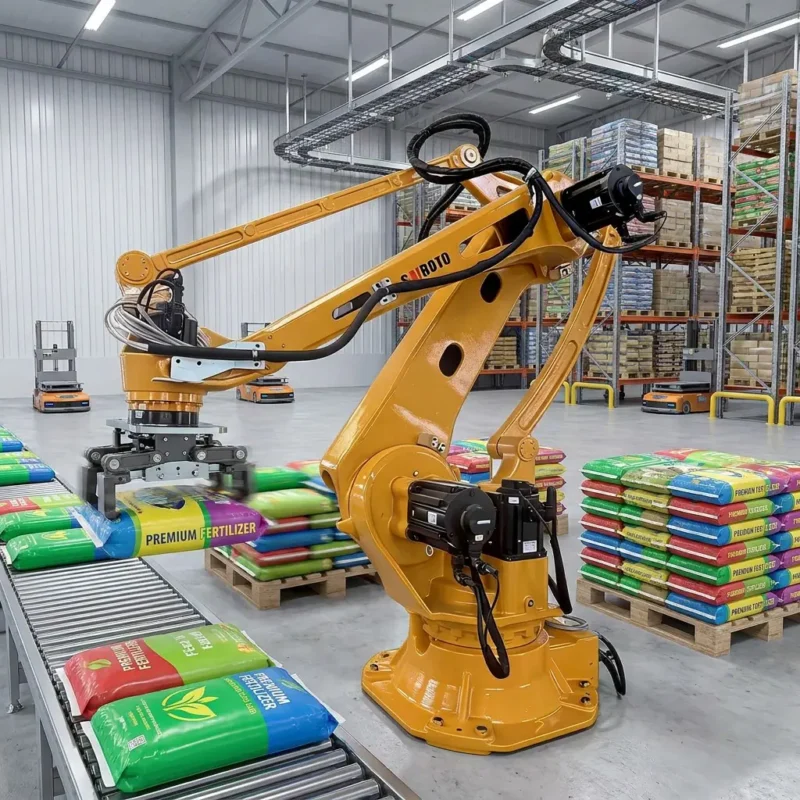

The XZB Fully Automatic Robot Palletizer is a high-performance 4-axis industrial robot designed for heavy-duty palletizing applications. With a 180kg load capacity and PLC-controlled motor system, this robot delivers exceptional throughput for core handling, bag stacking, and box palletizing tasks. The robust construction and advanced motion control ensure reliable operation in demanding industrial environments including cement plants, fertilizer factories, and chemical processing facilities.

Technical Specifications

Payload 180 kg
Axes 4
Reach 3200 mm
Repeatability ±0.05 mm
Stacking Speed 800 bags/hour
Power Supply 380V/50Hz (customizable to 220V/60Hz)
Air Pressure 0.5-0.7 MPa

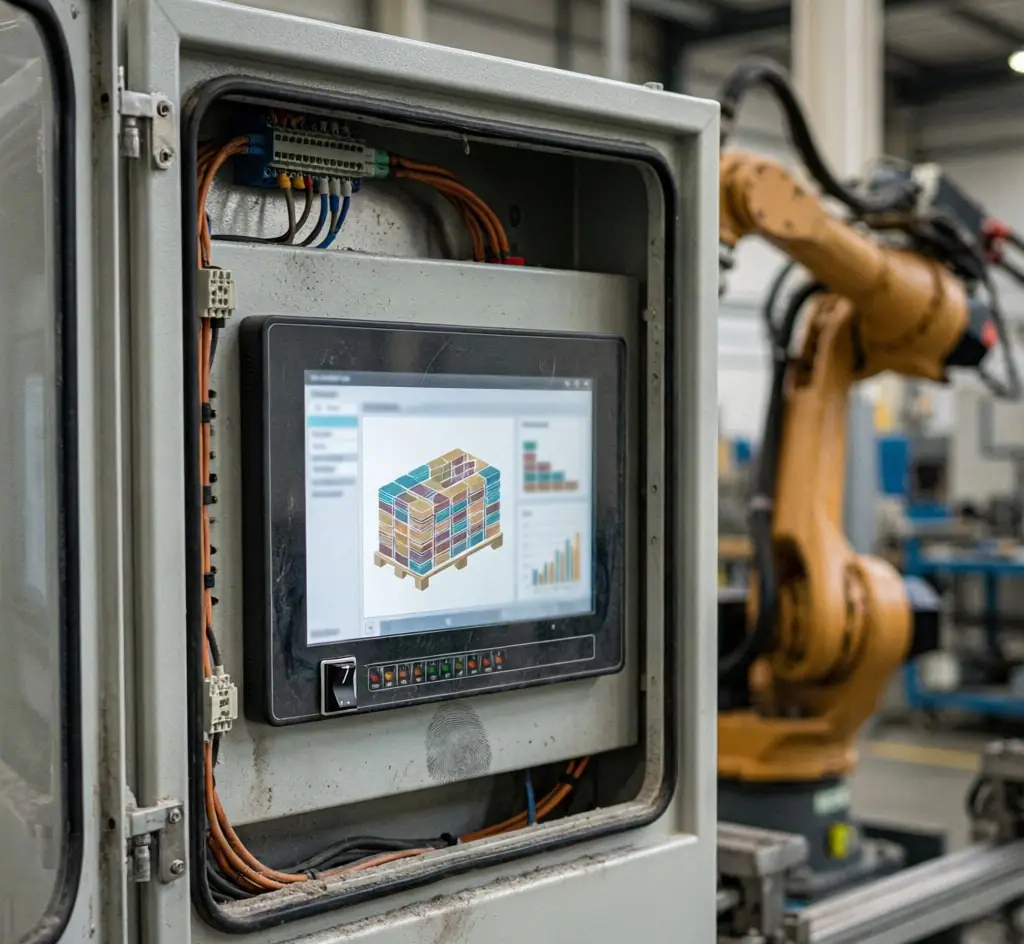

Control System Siemens PLC + 10-inch HMI Touch Screen

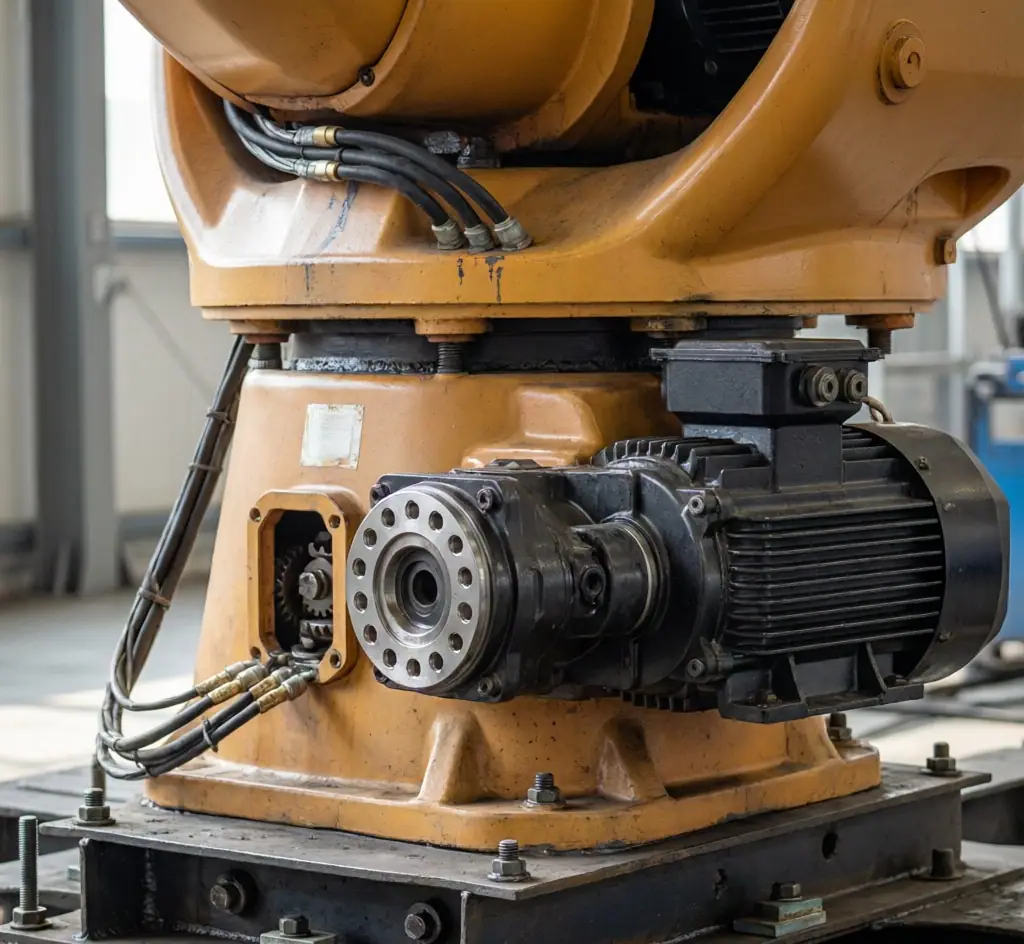

Motor Servo Gear Motor

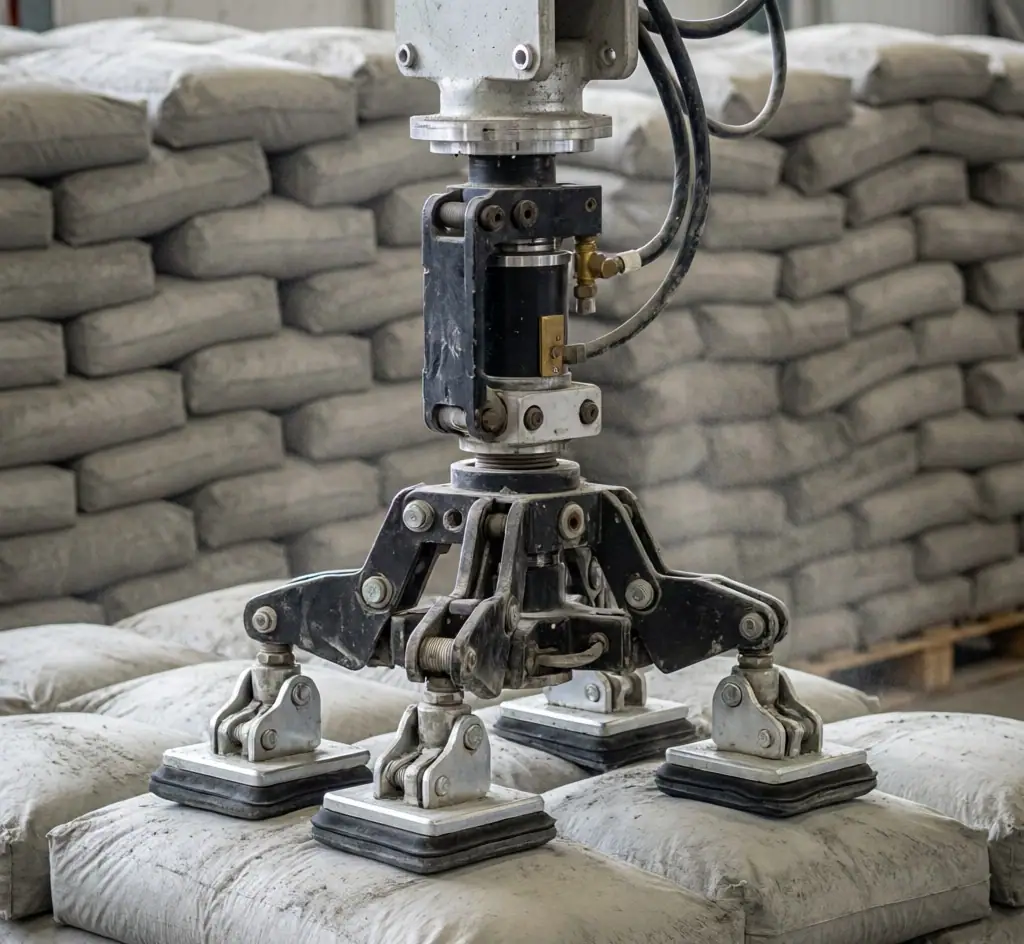

Gripper Type Multi-functional (pneumatic/vacuum/mechanical)
Weight 1500 kg
Dimensions 3400 × 2600 × 2000 mm
Max Bag Size 1200 × 700 × 400 mm
Pallet Size 1200 × 1000 / 1200 × 1200 mm
Operating Temperature -5°C to 45°C
IP Rating IP54

Key Features

180kg Heavy Payload

High-capacity servo-driven 4-axis system handles loads up to 180kg, suitable for heavy bags, boxes, and bulk containers with consistent precision.

PLC Motor Integration

Advanced PLC-controlled servo motor system provides smooth acceleration/deceleration profiles, reducing mechanical wear and extending service life.

Core Handling Capability

Versatile end-of-arm tooling supports multiple grip types – pneumatic, vacuum, and mechanical – for handling bags, boxes, pails, and irregular shapes.

Auto-Positioning System

Integrated vision-ready system detects pallet position and adjusts stacking patterns dynamically, ensuring precise placement every time.

Applications

Feed Industry Fertilizer Industry Building Materials Food Beverage Chemical Industry Logistics Warehousing

Frequently Asked Questions

The 180kg payload and multi-functional gripper system allow handling of bags (cement, flour, fertilizer, feed), boxes, plastic buckets, pails, and irregular-shaped containers up to 180kg total weight.
The PLC-controlled servo motor system provides precise motion control with optimized acceleration curves, reducing cycle time by up to 15% compared to conventional systems while extending mechanical component life.
Yes, the HMI touch screen allows operators to create and save unlimited stacking patterns. Common patterns include 5+7, 3+5, and interlocked configurations, with quick-changeover between products.
Average power consumption is 5.5kW during operation and 0.5kW in standby mode. The servo system includes regenerative braking to recover energy during deceleration.
