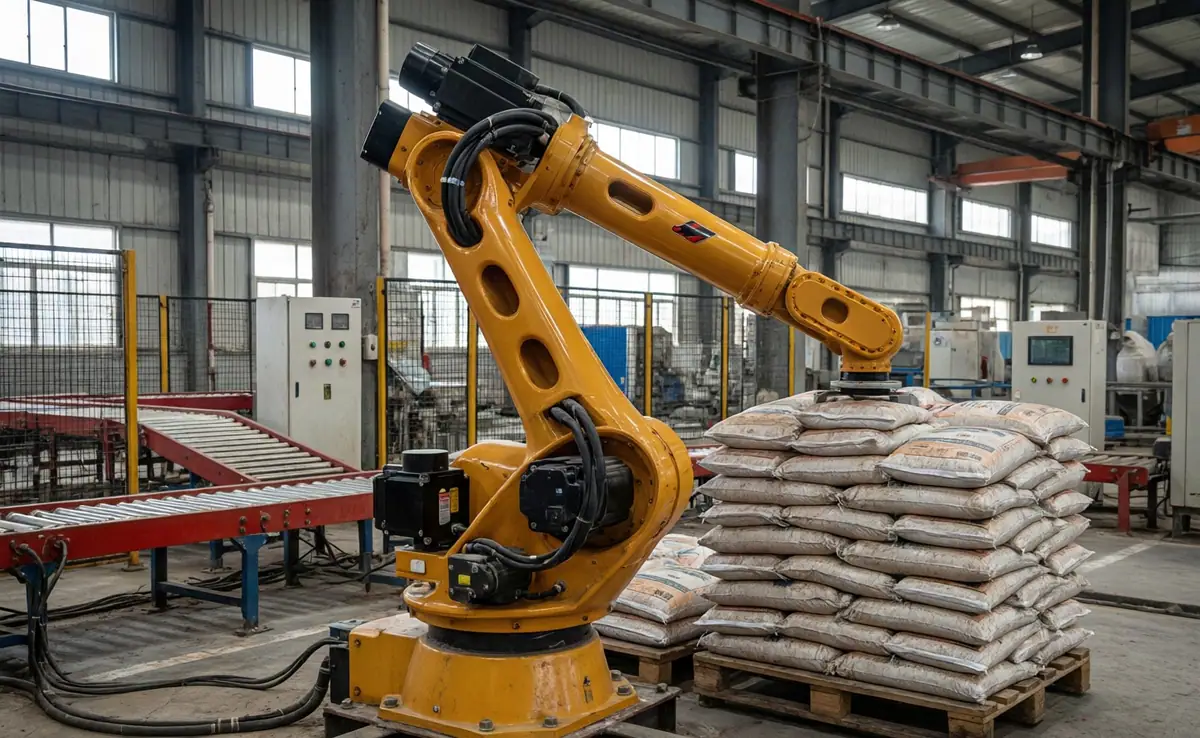

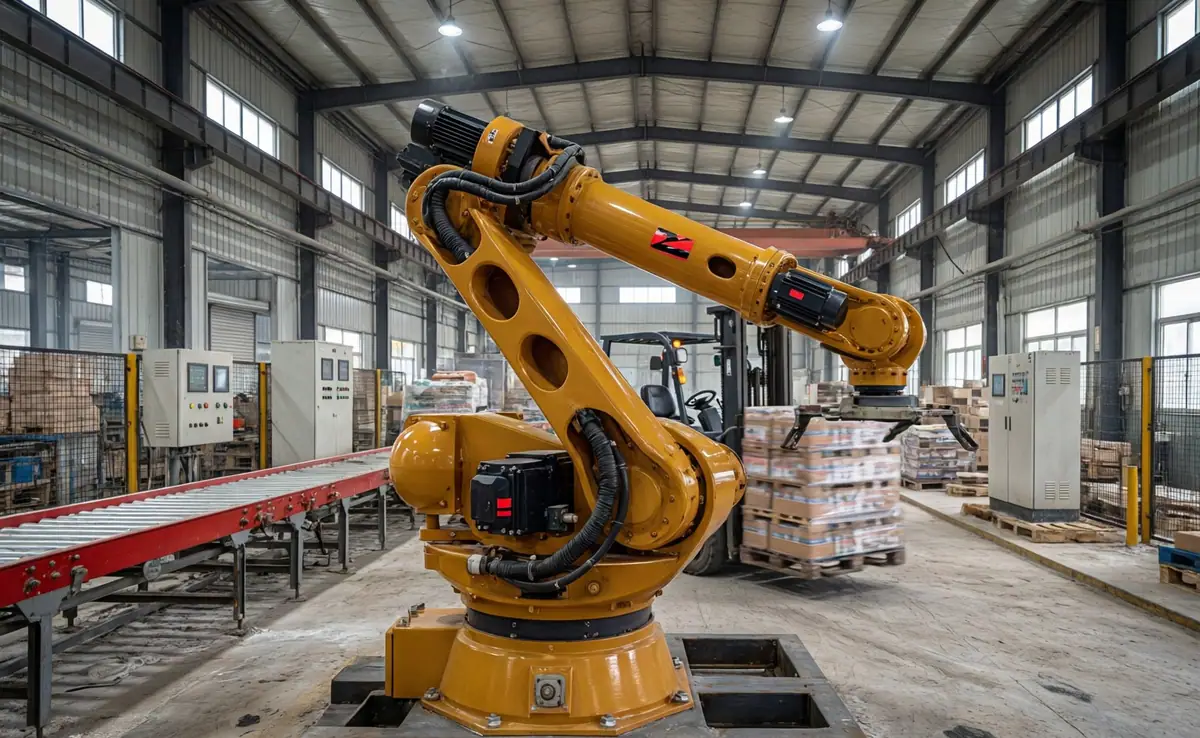

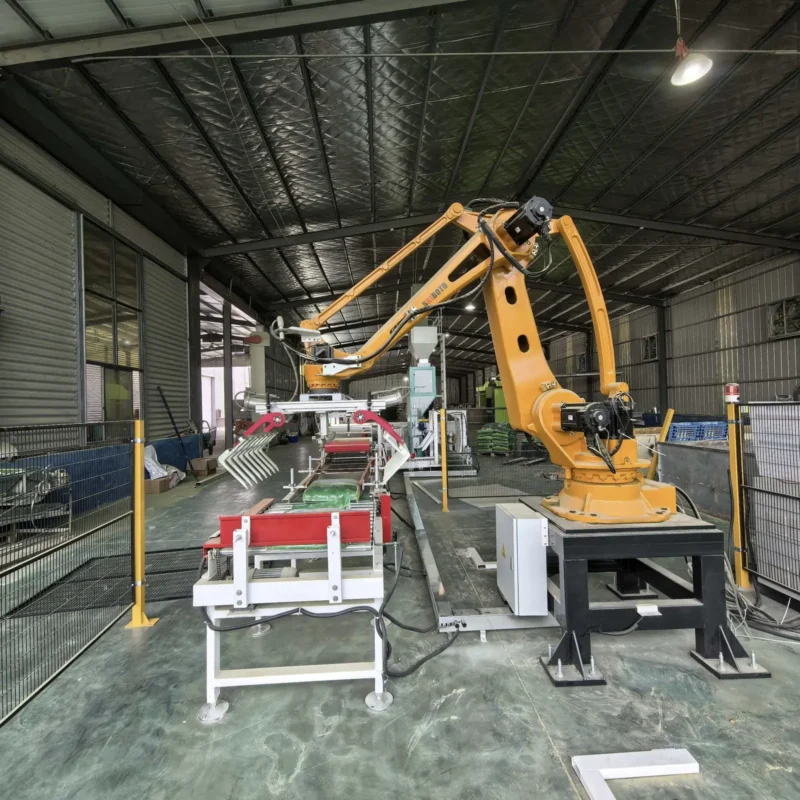

The XZB 4-Axis Robotic Stacker Crane is specifically engineered for fertilizer bag stacking and logistics operations. The extended reach design accommodates high-bay stacking configurations, while the corrosion-resistant construction withstands the acidic environment of fertilizer processing plants. With integrated logistics management software, this system seamlessly connects to warehouse management systems (WMS) for automated pallet tracking and inventory control.
| Payload | 180 kg |
|---|---|
| Axes | 4 |
| Reach | 3200 mm |
| Stacking Height | 2400 mm (8 layers) |
| Repeatability | ±0.05 mm |
| Stacking Speed | 800 bags/hour |
| Power Supply | 380V/50Hz (customizable to 220V/60Hz) |
| Air Pressure | 0.5-0.7 MPa |

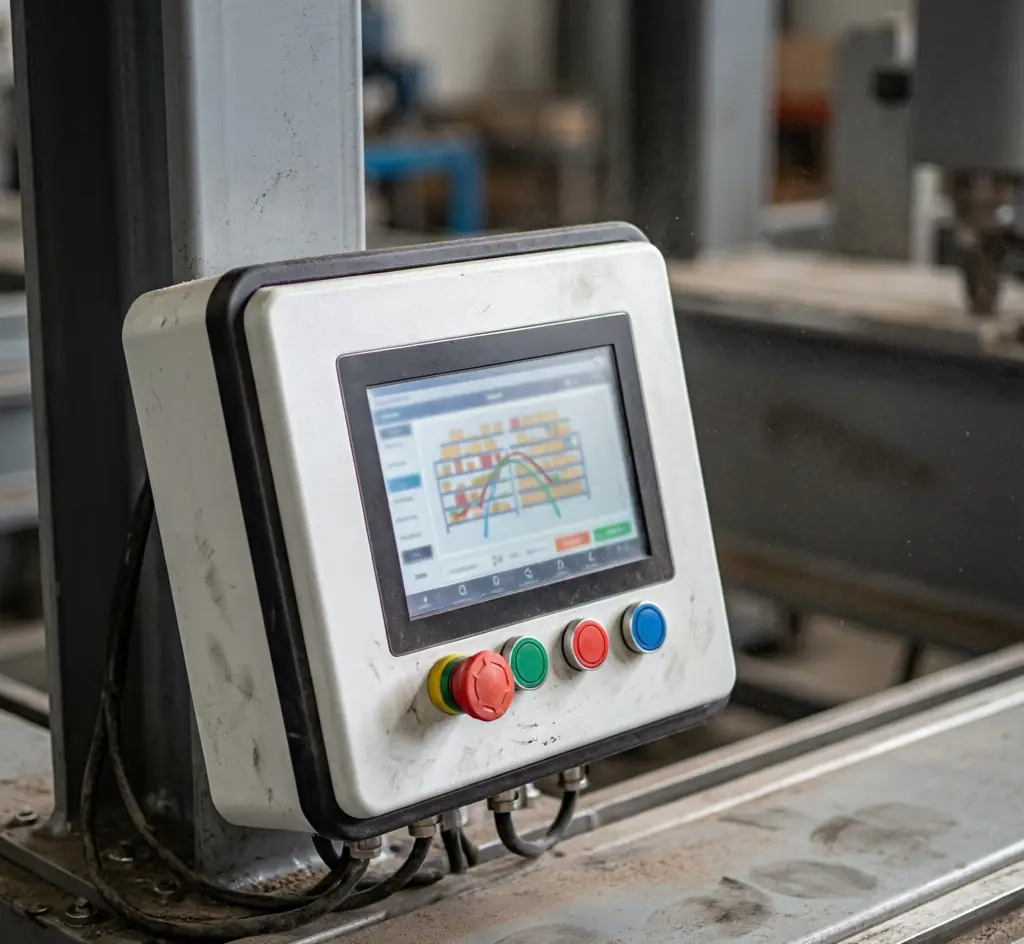

| Control System | Siemens PLC + 10-inch HMI + WMS Interface |
| Motor | Gear Motor |

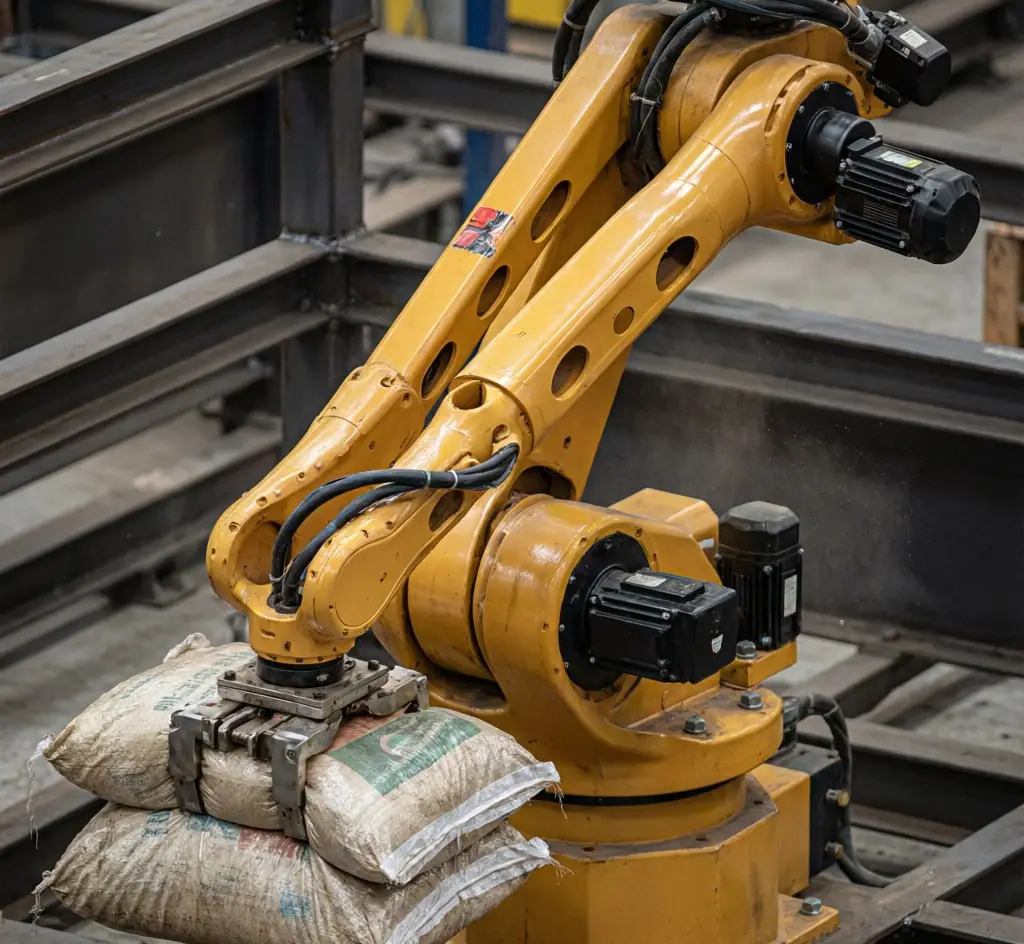

| Gripper Type | Chemical-resistant bag gripper |
| Weight | 1350 kg |
| Dimensions | 3400 × 2600 × 2100 mm |
| Max Bag Size | 1000 × 600 × 300 mm |
| Pallet Size | 1200 × 1000 mm |
| Operating Temperature | -5°C to 45°C |
| IP Rating | IP55 |
3200mm horizontal reach with 2400mm vertical stacking height, accommodating 8-layer stacking of standard fertilizer bags on 1200×1000mm pallets.

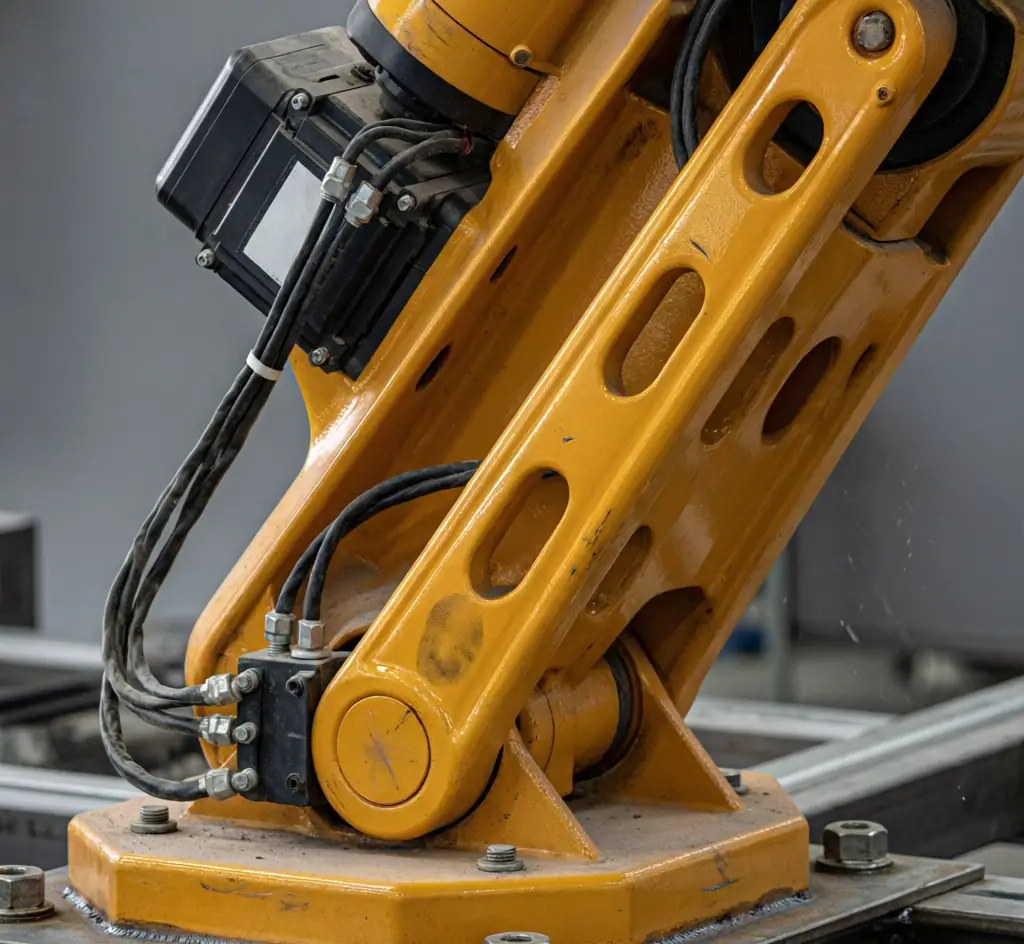

316 stainless steel fasteners, epoxy-coated frame, and chemical-resistant seals protect against ammonia, urea, and phosphate dust corrosion.
Built-in Ethernet/IP and Modbus TCP interfaces enable direct communication with major warehouse management systems for real-time inventory tracking.
Pre-programmed stacking patterns for common fertilizer bag sizes (25kg, 40kg, 50kg) with interlocked patterns optimized for pallet stability during transport.
