Smart ABB Industrial Robot with Touchscreen Control for Easy Operation in Warehouses

Brand Integration: ABB

Pricing
Price on request
MOQ
1 set
Warranty
1 year
Lead Time
30-45 days
Brand
ABB

The XZB ABB Smart Palletizing …

Quick Inquiry

Fill out the form below and our team will respond within 2 hours.

* 100% Response Rate · Response within 2 hours · No spam, ever

Product Description

The XZB ABB Smart Palletizing Robot integrates the world-leading ABB IRB-series robot arm with XZB’s intelligent control software and warehouse-optimized gripper systems. Designed for easy operation in warehouse environments, this system features an intuitive touchscreen interface that simplifies programming and operation for users of all skill levels. The ABB robot’s exceptional motion control and energy efficiency make it ideal for high-throughput warehouse palletizing and depalletizing applications.

Technical Specifications

Payload 180 kg
Axes 4
Reach 3200 mm
Repeatability ±0.04 mm
Stacking Speed 850 bags/hour
Power Supply 380V/50Hz (customizable to 220V/60Hz)
Air Pressure 0.5-0.7 MPa
Control System ABB OmniCore + XZB Smart App

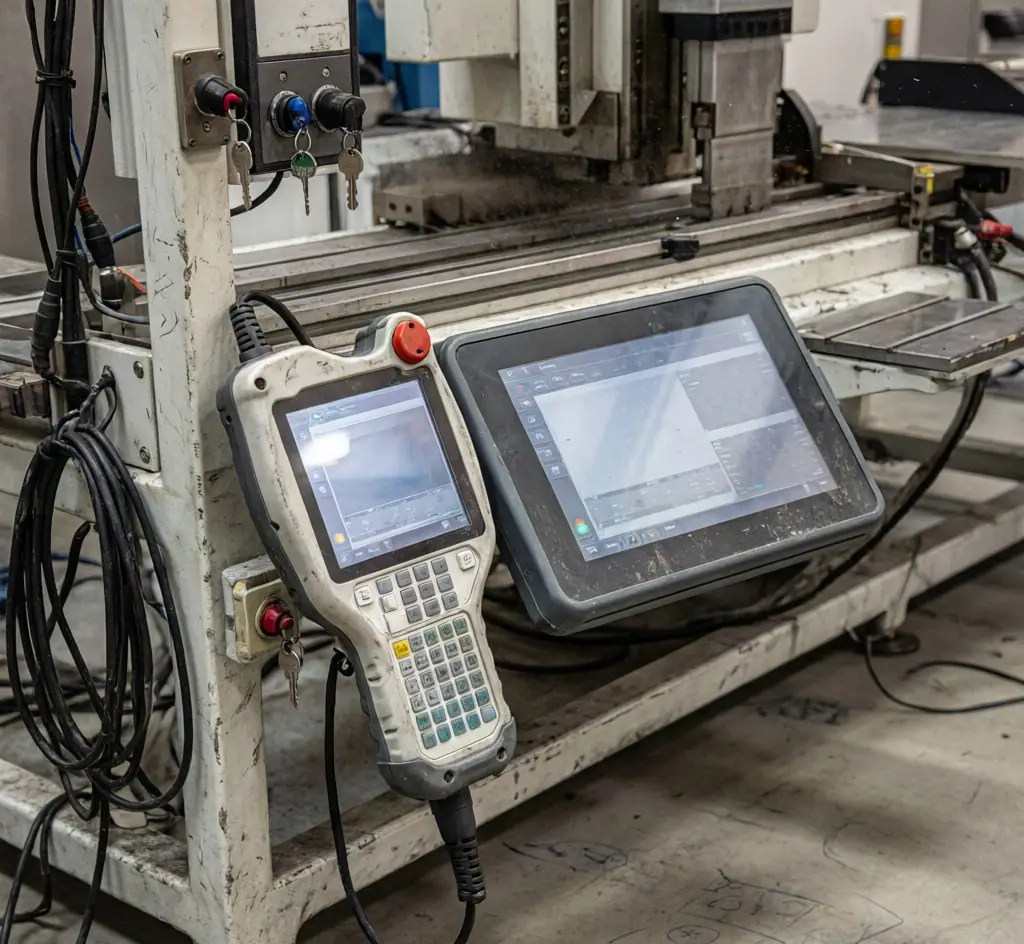

Teach Pendant ABB FlexPendant 15-inch
Motor ABB Servo Motors
Gripper Type Configurable (bag/box/mixed)
Weight 1550 kg
Dimensions 3300 × 2600 × 2000 mm
Max Product Size 1200 × 700 × 400 mm
Pallet Size 1200 × 1000 / 1200 × 1200 mm
Operating Temperature -5°C to 45°C
IP Rating IP65
Noise Level Under 70 dB

Key Features

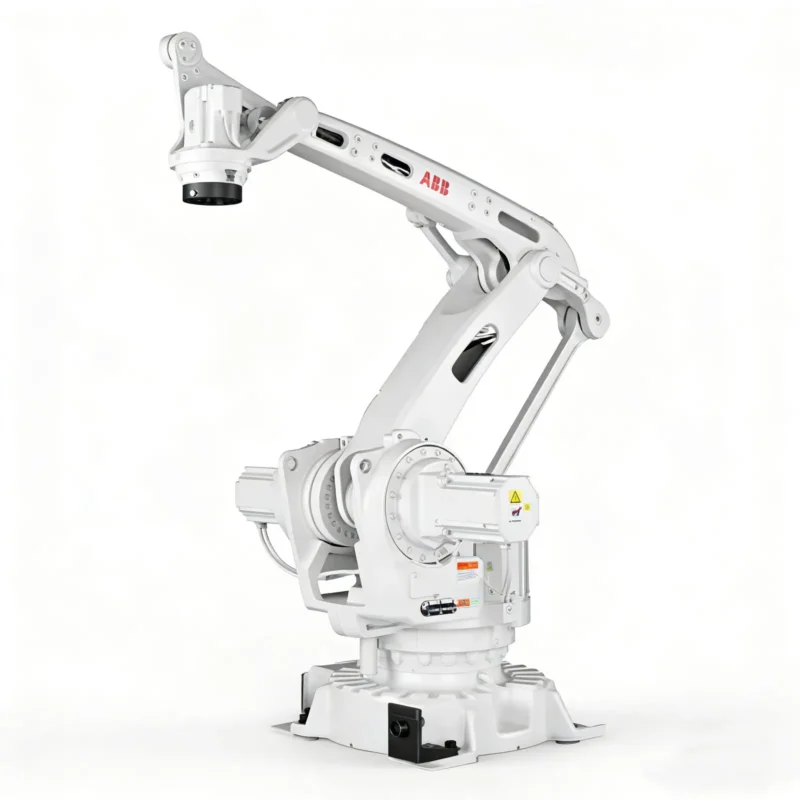

ABB IRB-Series Robot Arm

Genuine ABB 4-axis industrial robot with 180kg payload and 3200mm reach, featuring ABB's industry-leading motion control, TrueMove technology, and energy-efficient design.

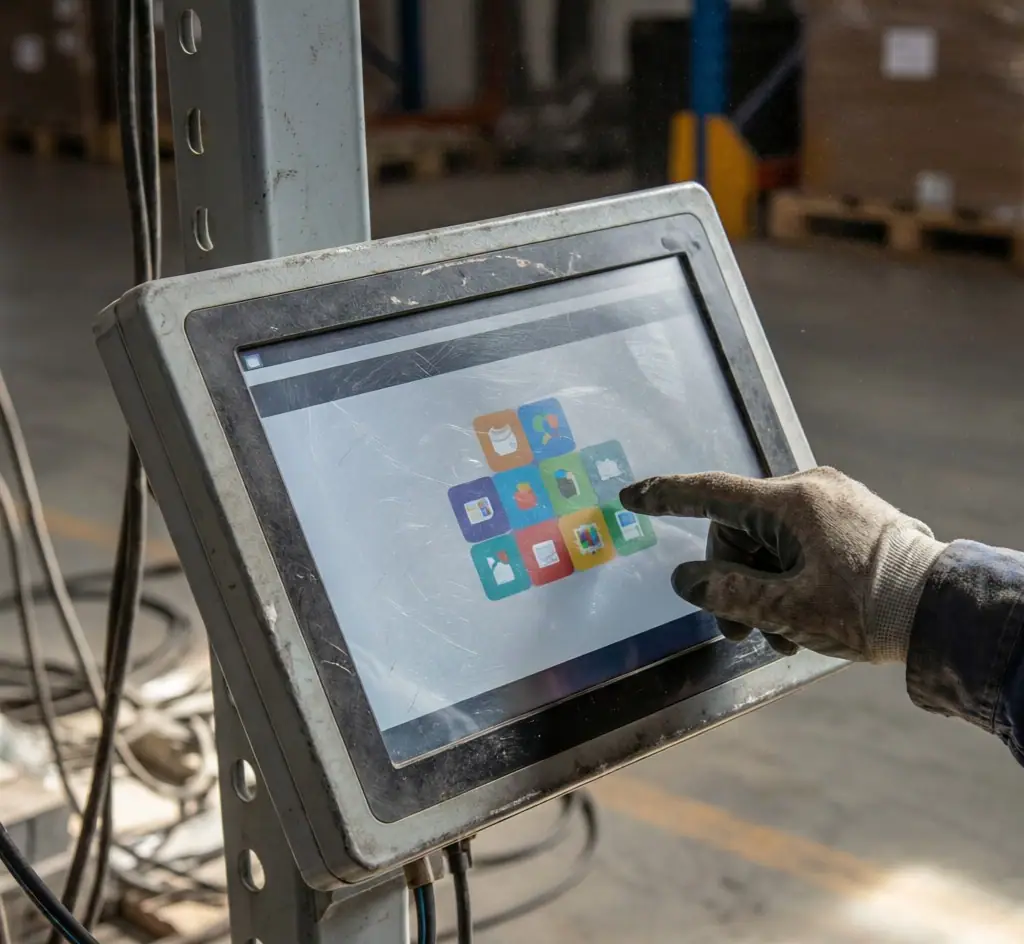

Intuitive Touchscreen Interface

15-inch industrial touchscreen with icon-based GUI, enabling operators to create stacking patterns, adjust parameters, and monitor performance with minimal training.

Warehouse-Optimized Design

Compact footprint and 360-degree accessibility allow installation in tight warehouse aisles. Low-noise operation (under 70dB) suitable for mixed-use facilities.

Energy Efficiency

ABB's regenerative power system recovers braking energy, reducing power consumption by up to 25% compared to conventional robots. Motion optimisation algorithms further reduce cycle time.

Applications

Logistics Warehousing Food Beverage Feed Industry Fertilizer Industry

Frequently Asked Questions

The system uses a genuine ABB IRB 460 or IRB 660 series 4-axis palletizing robot, selected based on your specific payload and reach requirements. All ABB documentation, warranty, and software updates are included.
The icon-based 15-inch touchscreen interface is designed for operators with no prior robot experience. Standard tasks (pattern selection, production start/stop, error recovery) require only 30 minutes of training. Advanced programming is available via the ABB FlexPendant.
ABB's OmniCore controller with regenerative braking recovers up to 25% of energy during deceleration. Combined with motion optimization, typical power consumption is 4.2kW vs 5.5kW for conventional systems, saving approximately $800/year in electricity costs.
