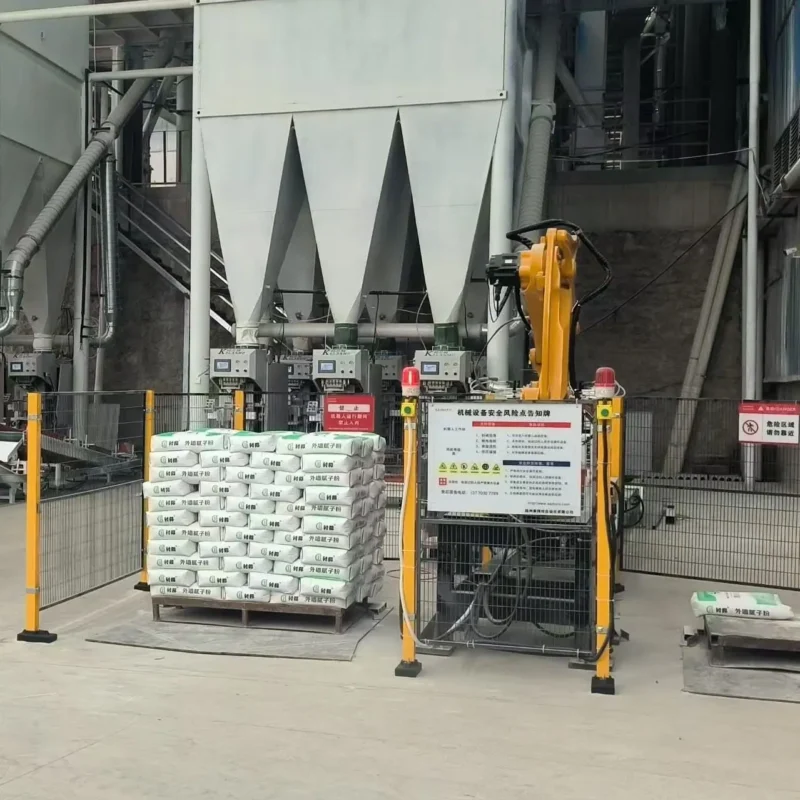

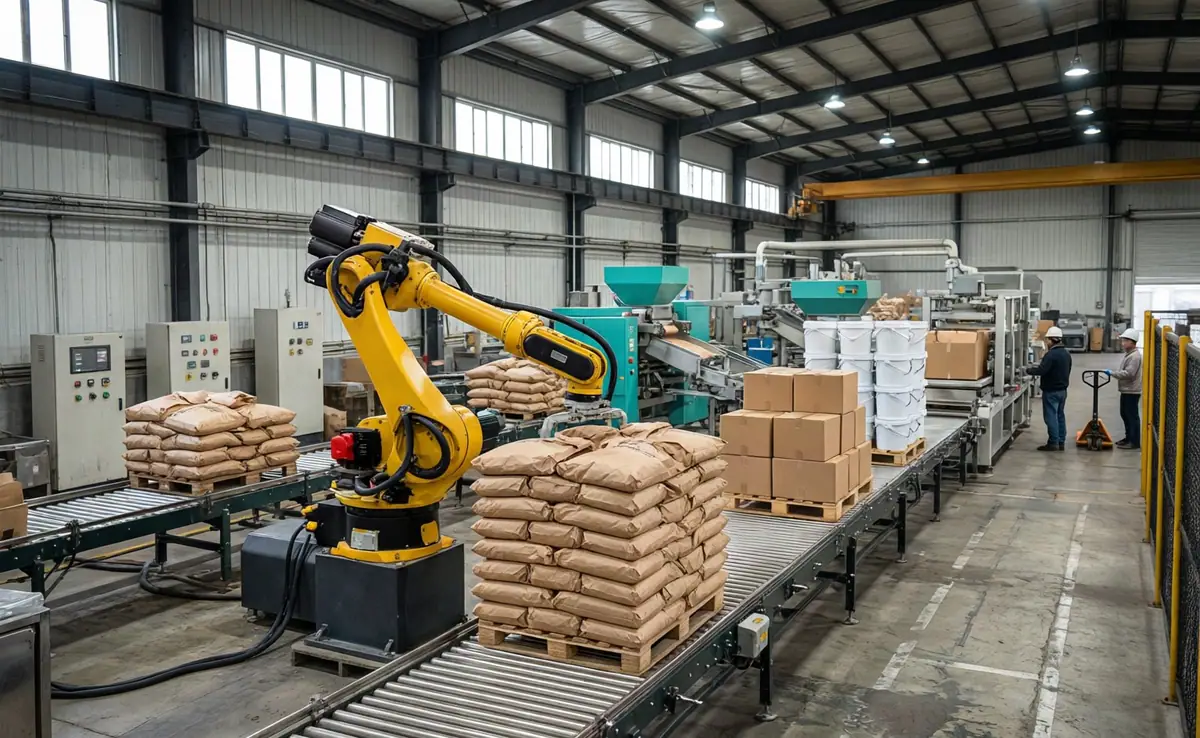

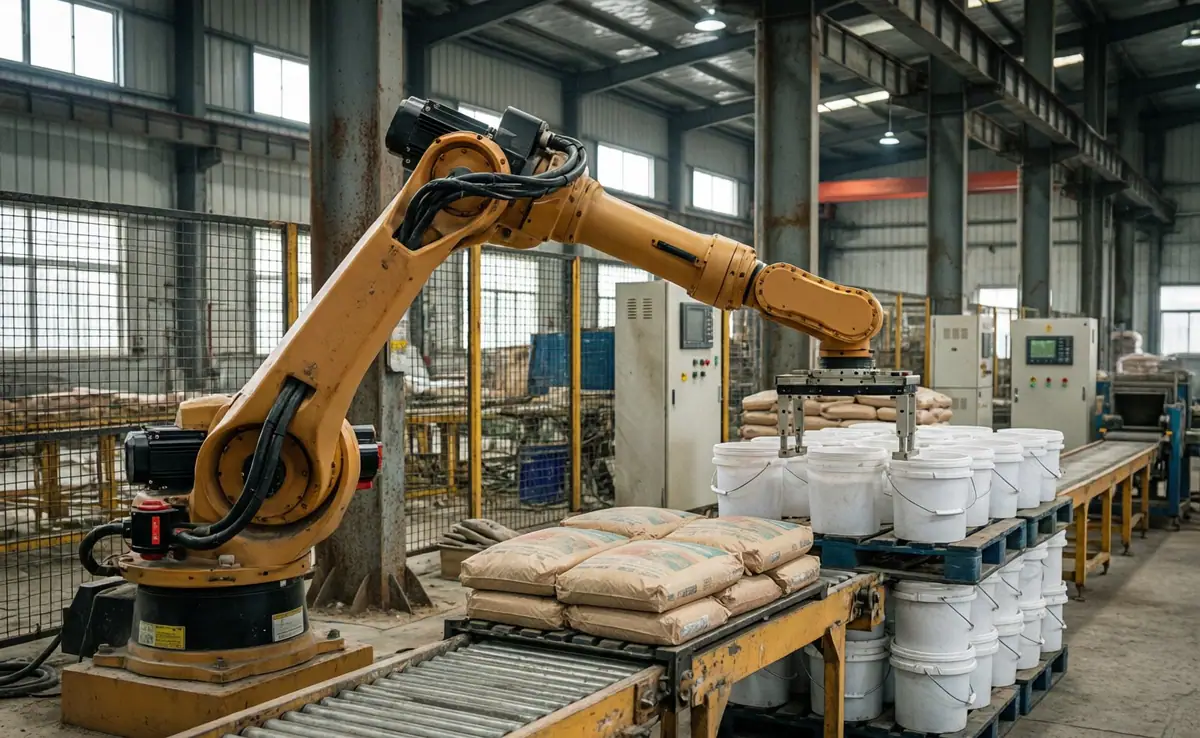

The XZB Multi-Purpose Automatic Stacker is a versatile palletizing robotic arm designed to handle an extensive range of products including feed bags, fertilizer bags, mortar bags, plastic buckets, and carton boxes. Its universal gripper system and programmable stacking patterns make it the ideal solution for factories handling multiple product types on a single line. The robust 4-axis design delivers 800 bags per hour throughput with ±0.05mm positioning accuracy.
| Payload | 180 kg |
|---|---|
| Axes | 4 |
| Reach | 3200 mm |
| Repeatability | ±0.05 mm |
| Stacking Speed | 800 bags/hour |
| Power Supply | 380V/50Hz (customizable to 220V/60Hz) |
| Air Pressure | 0.5-0.7 MPa |
| Control System | Siemens PLC + 7-inch HMI Touch Screen |
| Motor | Gear Motor |
| Gripper Type | Quick-change universal gripper (bag/box/bucket) |
| Weight | 1300 kg |
| Dimensions | 3200 × 2500 × 1800 mm |
| Max Product Size | 1200 × 700 × 400 mm |
| Pallet Size | 1200 × 1000 mm (standard) |
| Operating Temperature | -10°C to 50°C |
| IP Rating | IP55 |

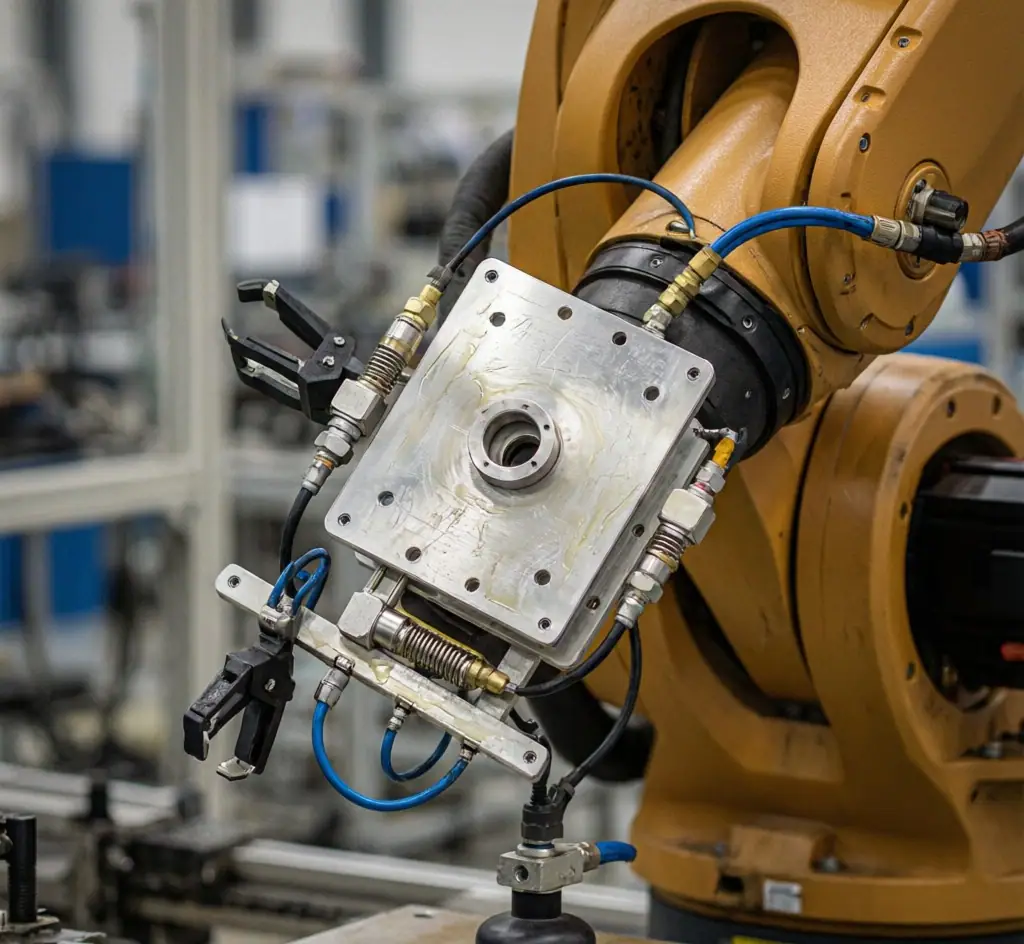

Quick-change gripper system handles bags, boxes, buckets, pails, and bottles without manual tooling changes. Compatible with feed, fertilizer, mortar, and chemical packaging.
Optimized motion control algorithms achieve 800 cycles per hour for standard bag stacking tasks, maximizing production line throughput.

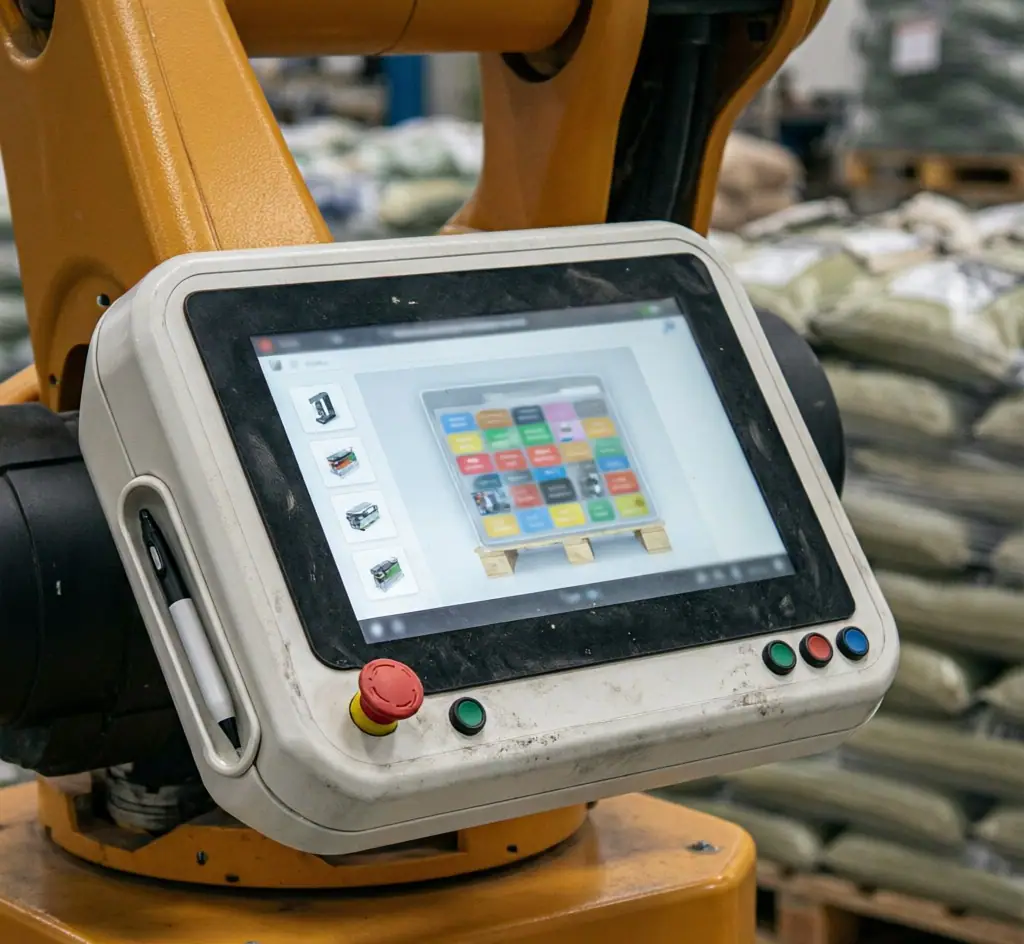

Pre-programmed patterns for common configurations (5+7, 3+5, interlocked) with custom pattern creation via HMI. Automatic layer counting and pallet change.

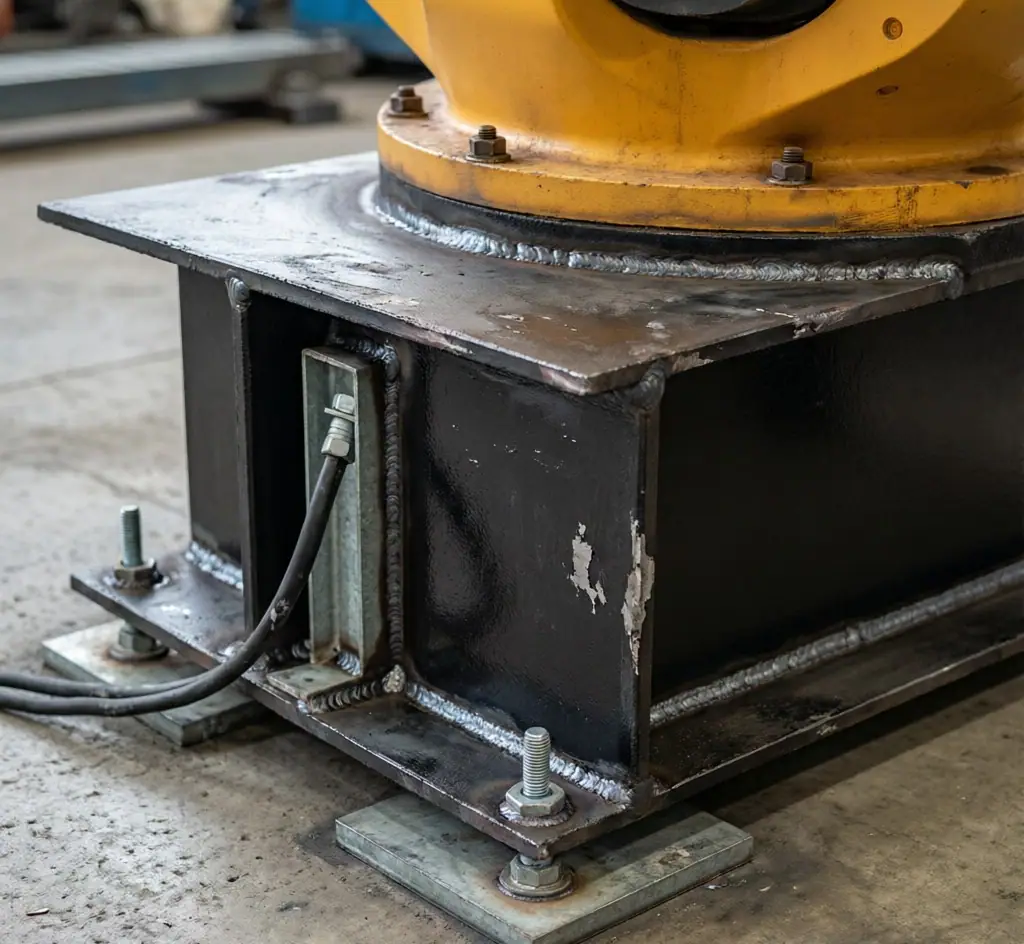

Welded steel frame with anti-corrosion coating, designed for harsh industrial environments including dust, humidity, and temperature variations.
